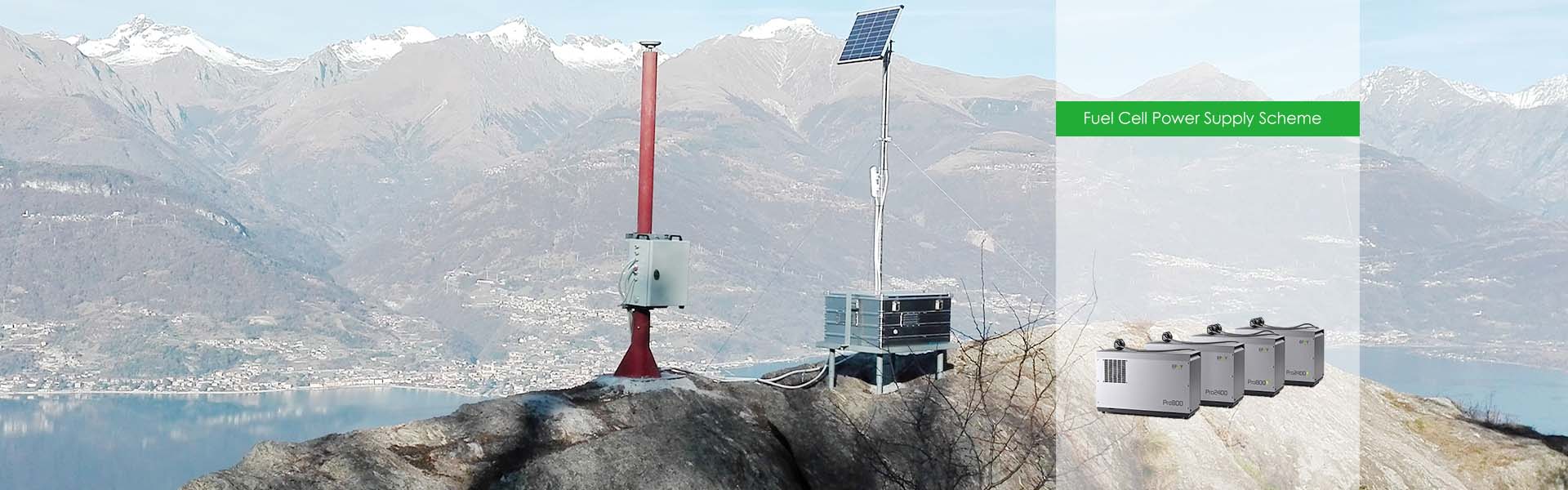

Fuel cell power supply scheme
PRODUCT AND SERVICE PRODUCT AND SERVICE Fuel cell power supply scheme


Direct methanol fuel cell (DMFC) is a kind of proton exchange membrane fuel cell, which directly uses methanol liquid fuel. Methanol is converted into carbon dioxide, protons and electrons at the anode. Protons move to the cathode through the proton exchange membrane and react with oxygen at the cathode. Electrons work at the cathode through the load of the external circuit. The reaction equation is as follows:

2 CH3OH + 3 O2 = 4 H2O + 2 CO2

Compared with other fuel cells, DMFC has the advantages of low reaction temperature (less than 100 C), fast start-up speed, no noise, low radiation and easy to carry. It is an important component of future power supply products.

It is more efficient and stable than PV
Stronger endurance than batteries
Quieter and more environmentally friendly than traditional generators

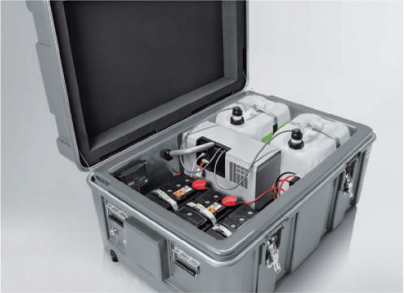

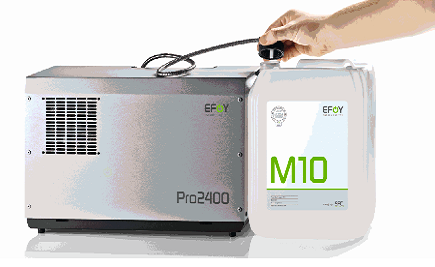

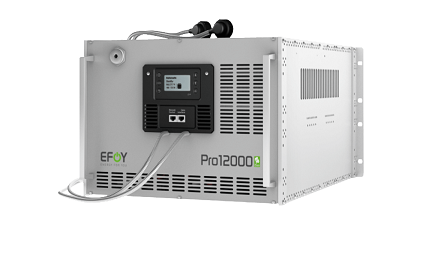

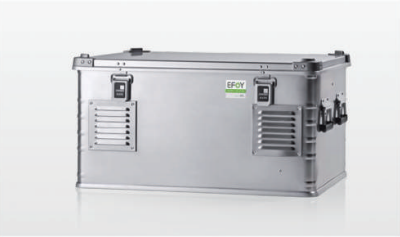

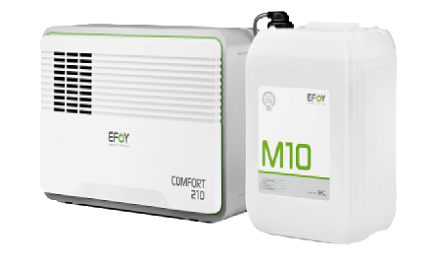

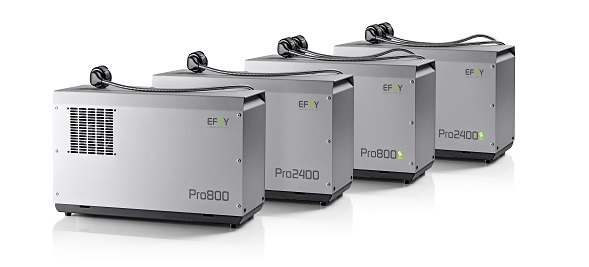

Fuel cell power generation unit

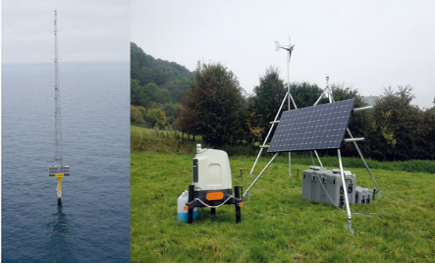

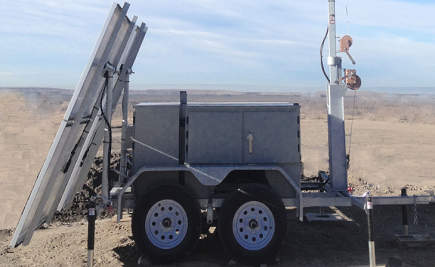

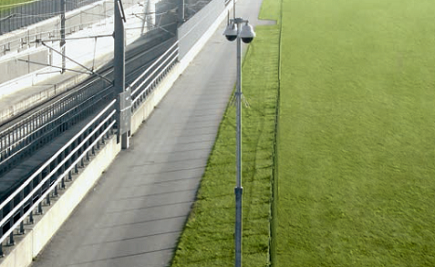

Reference Applications

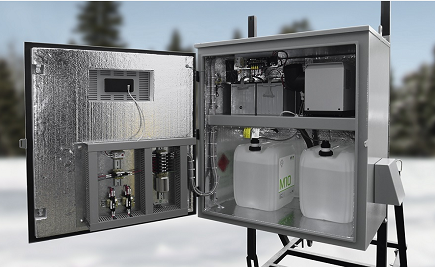

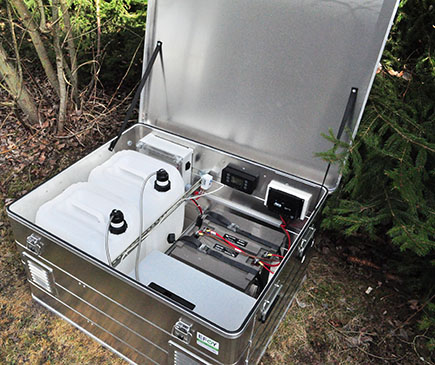

System Integration Solution
